What is Pulse Width Modulation (PWM) charging?
How does a Pulse Width Modulation Charge Controller Work?
The PWM charger constantly monitors the battery pack's state of charge to determine how much current to put back in.
The advanced type of Charge control ensures efficient charging of the batteries. PWMs help to regulate the often inconsistent voltage put out by power sources in order to protect the system batteries from overcharging. The PWM charger constantly checks the current battery state and self-adjusts accordingly to battery condition to send only the right amount of charge to the battery, eliminating over or under charging.
In essence, this type of charge controller works by reducing the current from the power source according to the battery’s condition and recharging requirements, which is in contrast to on/off charge controllers which suddenly cut off power transfer to minimize battery overcharging. The PWM charge controller does this by checking the state of the battery to determine both how long (wide) the charge pulses should be as well as how fast they should come.
By constantly analyzing the battery information, the PWM charge controller self-adjusts and sends the appropriate pulse to charge the battery. The PWM charger varies the length and speed of the pulses sent to the battery as needed. This is essentially a rapid on and off switch. When the battery is nearly discharged, the pulses may be long and continuous, and as it becomes charged, the pulses become shorter or trickled off.
Units with the float charging mode maintain batteries in storage that self discharge or batteries that can go weeks without use. This mode is not needed for often used carts with regular charging intervals.
This type of charge controller is idea for golf carts where deep discharge is a regular occurrence.
It provides several key benefits:
higher charging efficiency,
Optional float charging,
and healthier batteries that operate at full capacity.
Anderson SB50 cord end on every charger

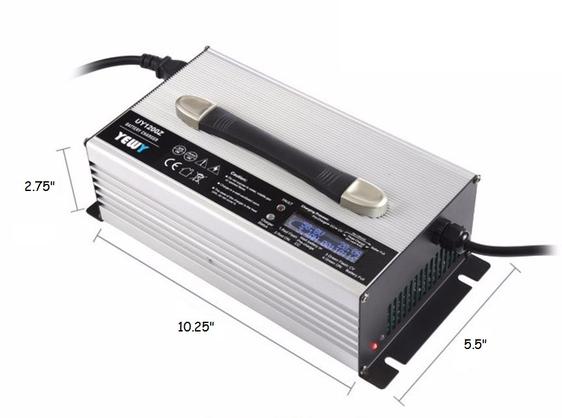

Lightweight and easy to carry or store
Input AC 110-130 volts.
Aluminum heatsink case

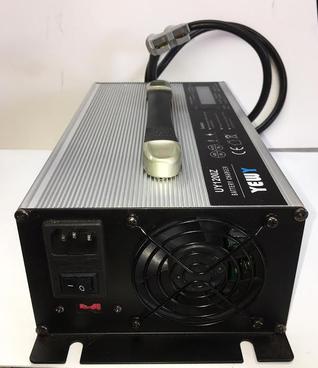

Built in cooling fan
Multiple plug ends available.
Fixed cord end is a common Anderson SB50
Short adapter cords available for most common golf carts.
Switchable cord ends allow one charger to service multiple carts.
36 volts 20 amps or
48 volts 20 amps
Anderson SB50 connector supplied
Add cord adapters to fit
Club Car Crowfoot (2 blade)
Club Car Round (3 pin)
Ezgo D plug for TXT
just $16 each
To order select 36 or 48 volts below
Then add as many adapters as you need
Both chargers 3 stage / 20 a max
Adapters top to bottom >
Ezgo TXT D style
Club Car 48v Round
Club Car Crowfoot
NEW Triangle plug for RXV & TXT48
Use the other button to purchase an adapter separately. Thank you

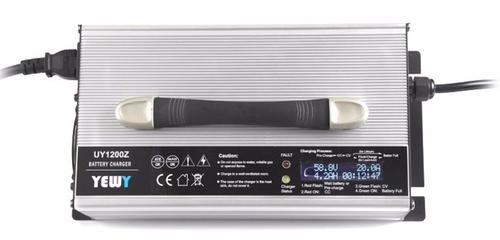

Yewy 1200z smart charger
New lower price
Golf Cart Parts and
Golf Cart Accessories
golf Carts Unlimited
Click Charger cord menu above to see other popular connector adapters
Use the ADD-ON button to add an adapter to your charger order - use this button if we are sending an adapter with your charger only

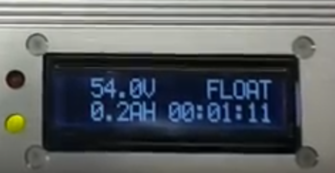

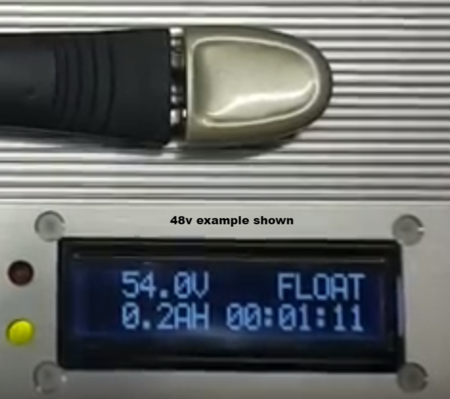

LCD readout gives real time charging information
See the battery pack voltage,
current amperage draw, charging time,
and the quantity of amp hours put back into the pack
Plus a charge status light
Connectors for on board type charger or if you just want an inexpensive charge connection.
$16 - 18.00

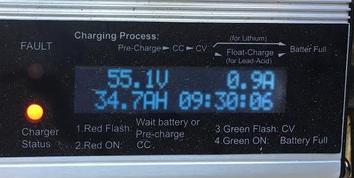

The pack voltage and current amp draw indicate this pack is in the final charging stage.
The amp hour (AH) is the actual amount of energy put back into the pack and indicates useage

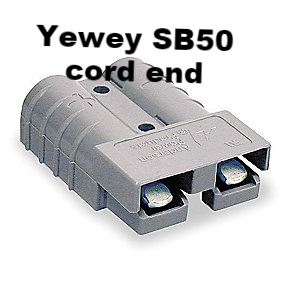

The Yewey charger comes with the SB50 plug shown above.
Adapters below plug into the SB50 and into most popular carts.
Select the ADD-ON adapter to ship with your charger or
Select the Yewey charger adapter to order separately
36v charger with float mode $239 48v charger without float mode $219
